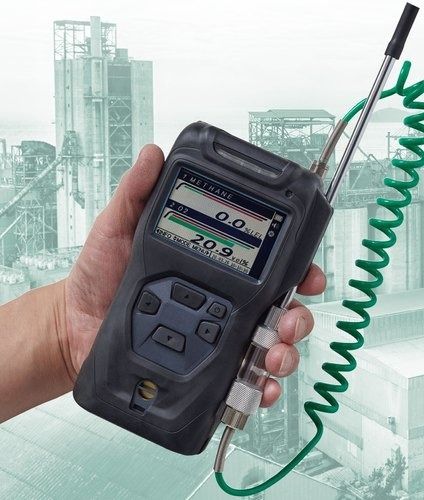

XP-3310II XP-3360II and XP-3360II-W portable combustible gas detectors are a repacement for the succesfull XP-3110 and XP-3160 portable gas detectors.
Portable combustible gas detector, easy to use for the detection of combustible gases and solvent vapours.
|
Features
- Convert to 32 types gas’s concentration*
- Robust design
- Wide range models
- Up to five combustible gases can be set as target gas (option)
- Selectable power supply: alkaline AA batteries / rechargeable nickel metal hydride AA batteries
- Timer and stopwatch function
- Build in flaslight
Accessories
Gas sampling tube(1m), Shoulder strap, Drain filter, Filter element, Alkaline AA batteries(or Rechargeable nickel metal hydride AA batteries) x 4, Screen protector film x 3
Gases
| Detectable gases | |
|---|---|
| Combustible gas | CxHy |
Specifications
| Model | XP-3360II-W | XP-3360II | XP-3310II |
|---|---|---|---|
| Target Gas | Combustible gas | ||
| /solvent vapor | |||
| Detection Principle | Catalytic | ||
| Measure Range | 0.0–100.0%LEL (100.1–110.0%LEL) | 0–5000ppm or | 0–100%LEL |
| (Reference Indication) | Enable to display in ppm. | 0–10000ppm | (100.1–110.0%LEL) |
| (5001–5500ppm or 10001–11000ppm) | |||
| Accuracy*2 | ≤ 1000ppm : ±100ppm | ≤10%F.S.: ±2.5%F.S. | ±5%F.S.. |
| 1001ppm < n ≤10000ppm : | >10%F.S.: ±5%F.S. | ||
| ±500ppm | |||
| Other than above : ±5%F.S. | |||
| Resolution | 0.1%LEL or 1ppm | 1ppm | 0.1%LEL |
| Alarm Set Value | 20%LEL | 250ppm or 500ppm | 20%LEL |
| Response Time | T90: 30 seconds | ||
| Continuous Operation Time*3 | Approx. 15 hours | ||
| Sampling Method | Extractive | ||
| Alarm Method | Gas Alarm: Beeping with flashing red light and AL icon on the LCD Device Alarm: Beeping with flashing yellow light and error message on the LCD |
||
| Power Source | ･Non-rechargeable alkaline AA battery x4: Toshiba LR6, Panasonic LR6X, Duracell MN1500, Energizer E91 or Varta 4106 ･Rechargeable nickel metal hydride AA battery x4: New Cosmos HR-3UTG |
||
| Operating Temperature/Humidity | -20 to +50℃ 95%RH. No condensation | ||
| Compliance*1 | ATEX: Ex II 1G Ex ia da IIC T4 Ga*1 IECEx: Ex ia da IIC T4 Ga*1 CE (ATEX, EMC, RoHS, RE nad LVD directives) |
||
| Ingress Protection | IP67 | ||
| Main Features | Self-diagnosis (sensor error), Zero adjustment, Battery level indication, Flashlight, Peak-hold, LCD backlight, Audio alarm muting during gas alarm, Time indication, Alarm test, Alarm volume change, Audio muting | ||
| Dimensions | W91 x H164 x D44mm | ||
| Mass | Approx. 460g (including batteries) | ||
| Accessaries | Gas sampling tube(1m), Shoulder strap, Drain filter, Filter element, Alkaline AA batteries(or Rechargeable nickel metal hydride AA batteries) x 4, Screen protector film x 3 | ||
*1 When using alkaline AA batteries. Please contact us for full information.
*2 Under an identical measurement condition.
*3 At 25℃, with no alarm and backlight off. The time varies according to the circumstances, condition of use, storage period, battery manufacturer, etc.
