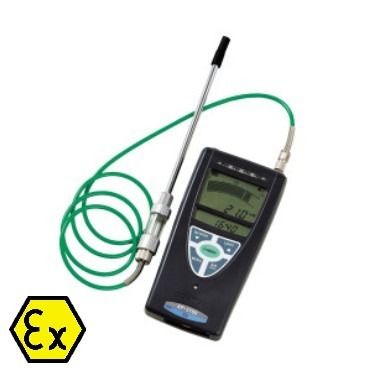

XP-3380II - suction type portable oxygen detector is a replacement for the succesfull XP-3180 portable gas detector.
Portable gas detector, easy to use for the detection of oxygen (O2).
|
Features
- Extractive type oxygen concentration indicator.
- Convenient for measuring oxygen concentration in containers where sampling is difficult.Robust design
- Selectable power supply: alkaline AA batteries / rechargeable nickel metal hydride AA batteries
- Timer and stopwatch function
- Built in tourch
- Bluetooth connection to Android and IOS app
Accessories
- Gas sampling tube(1m)
- Shoulder strap
- Drain filter
- Filter element
- Alkaline AA batteries(or Rechargeable nickel metal hydride AA batteries) x 4
- Screen protector film x 3
Gases
| Detectable gases | |
|---|---|
| Oxygen | O2 |
Specifications
| Model | XP-3380II |
|---|---|
| Gas Detected | Oxygen |
| Detection Principle | Galvanic cell |
| Sampling Method | Extractive |
| Detection Range | 0 to 25.0 vol% |
| Indication Accuracy*2 | ±0.3vol% f.s. |
| Resolution | 0.1vol% |
| Alarm Set Value | 18.0vol% |
| Display | Coloured LCD digital (with backlight) Digital display Digital bar display |
| Alarm Indication |
Beeping with flashing red light and AL icon on the LCD Beeping with flashing yellow light and error message on the LCD |
| Explosion-Proof Structure*1 | ATEX: Ex II 1G Ex ia IIC T4 Ga*1 IECEx: Ex ia IIC T4 Ga*1 CE (ATEX, EMC, RoHS, RE nad LVD directives) |
| Operation Temperature | -20 to 50℃ 95%RH. No condensation |
| Power Source | ･Non-rechargeable alkaline AA battery x4: Toshiba LR6, Panasonic LR6X, Duracell MN1500, Energizer E91 or Varta 4106 ･Rechargeable nickel metal hydride AA battery x4: New Cosmos HR-3UTG |
| Battery Life*3 | Up to 100 hours |
| Dimensions | W91 x H164 x D44mm |
| Weight | Approx. 460g (16oz.) (including batteries) |
| Ingress Protection | IP67 |
| Accessories | Gas sampling tube(1m), Shoulder strap, Drain filter, Filter element, Alkaline AA batteries(or Rechargeable nickel metal hydride AA batteries) x 4, Screen protector film x 3 |
*1When using alkaline AA batteries. Please contact us for full information.
*2 Under an identical measurement condition.
*3 At 25℃, with no alarm and backlight off. The time varies according to the circumstances, condition of use, storage period, battery manufacturer, etc.
